Reduction Gear Box Multiplier

Reduction Gear Box Multiplier
Reduction Gear Box Multiplier
Send Inquiry
Product Code : 21
Brand Name : SM
Product Description

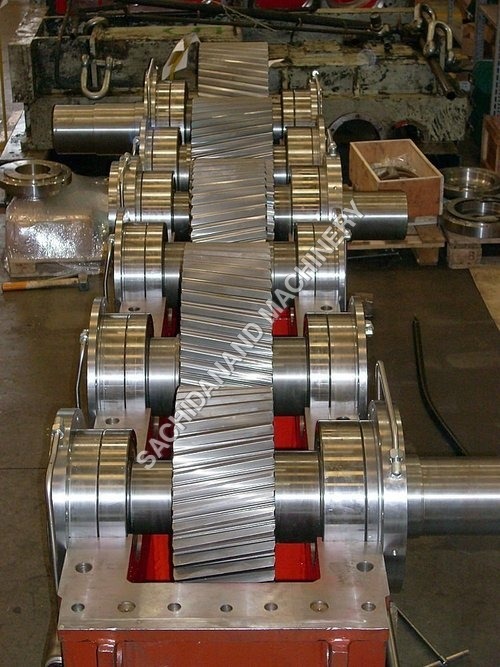

Reduction Gear Box Multiplier

Relying on our wide experience & knowledge in this sector, we are counted amongst the top most leading & reputed manufacturers and suppliers of Reduction Gear Box Multiplier. Our company is offering wide range of gear box multipliers which include single stage, double stage and multistage gear boxes. Extensively demanded in various industries like cement and sugar mills, this Reduction Gear Box Multiplier is widely accredited in the market for its rugged design, corrosion resistance and less power consumption.

 Technical Specifications:

Casing / Housing / Structure Material

Steel Fabricated

Gear Material

Forged and forged blank EN-9, EN-19, EN-24 Steel

Gear Type

Spur, Single & Double Helical Gears upto 2500mm Dia

Normal Input Load Range

From 200 H.P. upto 2000 H.P. Drives

Maximum Peak Load

6000 H.P.

Size Range

150mm PCD upto 750mm PCD


50 RPM to 1500 RPM

All Shafts Material

Forged Class-IV

Anchor / foundation bolts

Carbon Steel

Special Features: -

  •     Gear boxes are designed as per ASTM/DIN/ Indian standards
  •     Heavy duty and sturdy design of gear box and gears which is suitable to bear overloads
  •     Complete structure of Gear Box is MIG Welded which is tested by non-destructive weld testing
  •     Complete casing / housing / structure of the Gear Box is Stress relieved and fully aligned
  •     Casing / housing / structure of the Gear Box is horizontal split type
  •     All Gears are Ultrasonic Tested, duly hardened ground
  •     Rated torque, rated speed, torsional stiffness, and backlash are some of the points considered while designing a gear box
  •     All Pitches of the gears are precisely checked and trialed
  •     Genuine and Branded Heavy Duty Anti friction Spherical Roller Bearings are installed after thorough calculation
  •     Double Oil Seals complete with Internal & External Pipeline for lubrication of Gears & Bearings is provided
  •     Forced cooling arrangement / duplex type with inter locking system is provided
  •     Inspection window at various levels is provided for proper viewing of gears inside the gear box
  •     Flow indicator, temperature indicator and proper interlocking with mill is done
  •     Vent Pipes are provided for release of heat and oil from inside the Gear Box
  •     72 Hour Non-stop trial of gear box is done on various speeds before dispatch
  •     Vibration, voice and lapping levels are thoroughly checked on trial before dispatch
